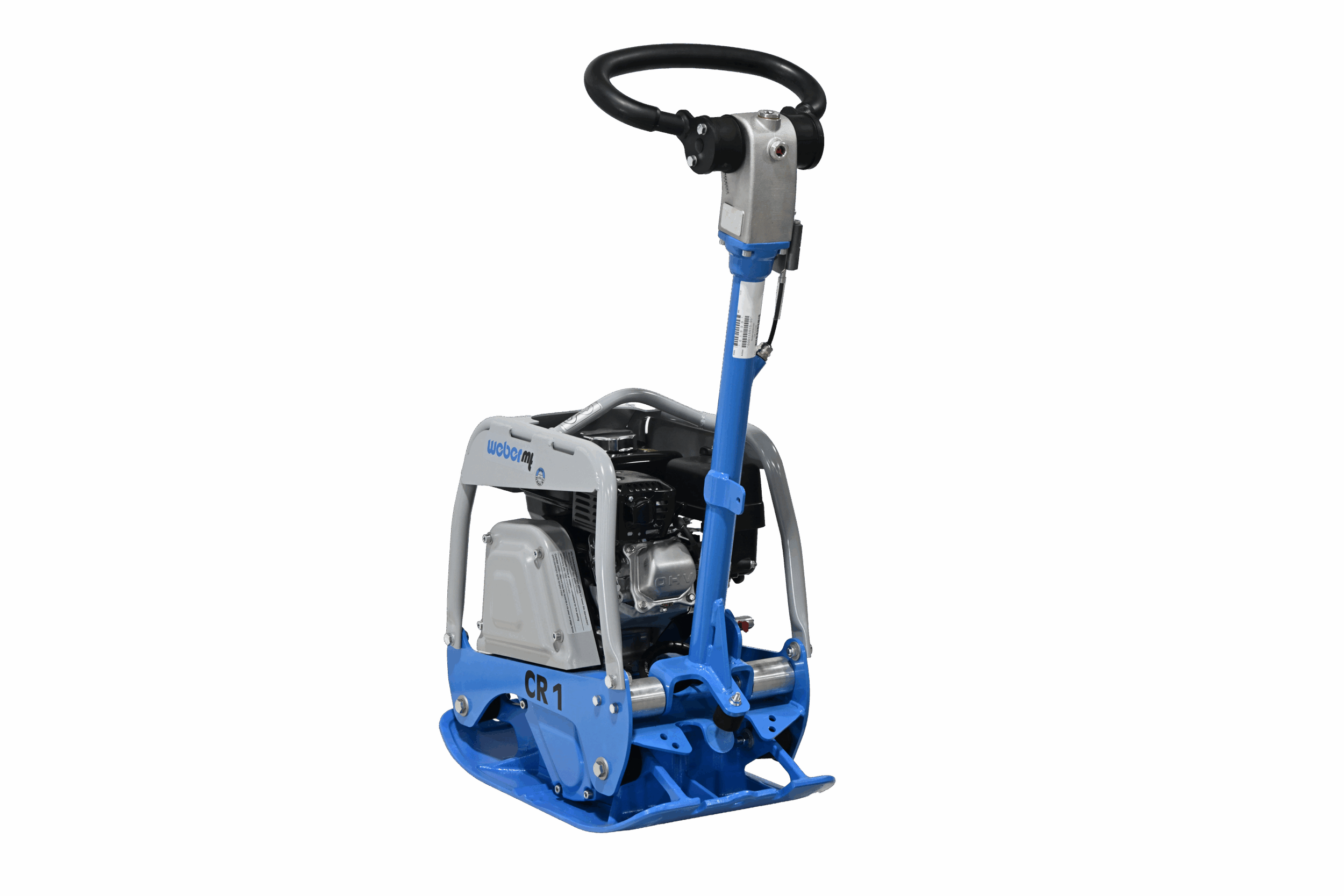

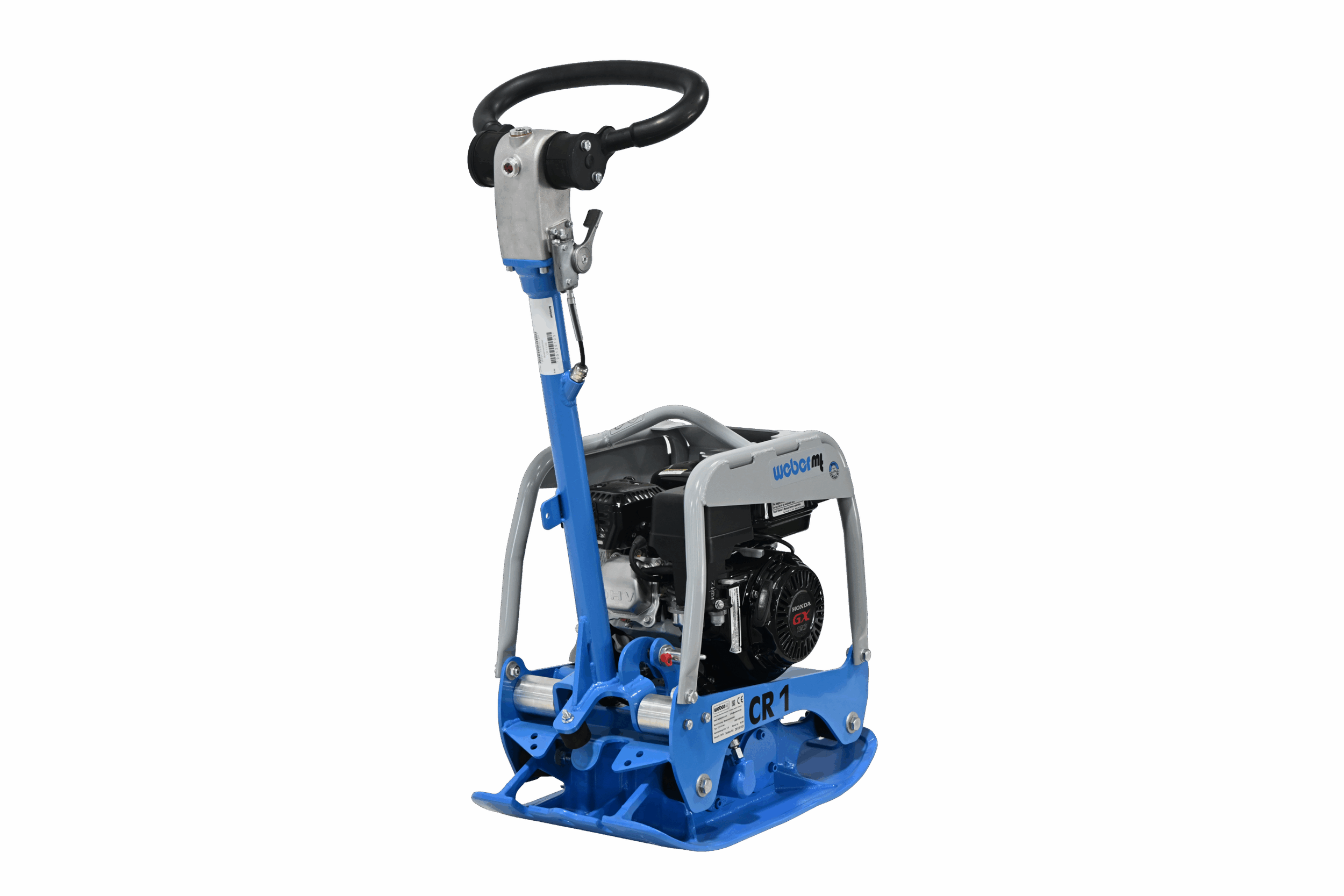

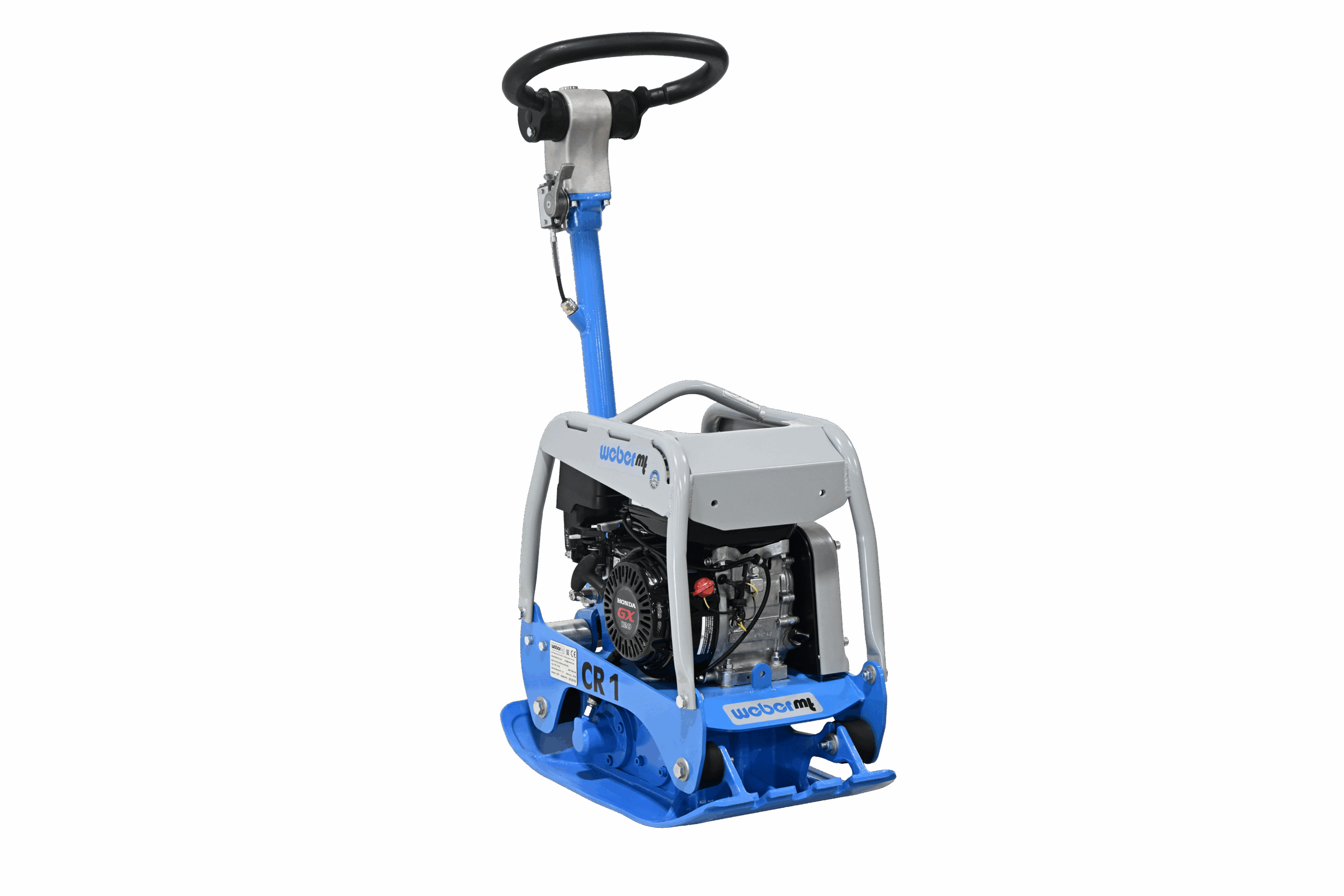

CR1 Reversible Plate
Core Technical Specifications
CR 1-III Hd model features the following specs:
Operating Weight: 203 lbs (92–95 kg).
Centrifugal Force: 3,372 lbs (15 kN).
Working Width: 14 inches (350 mm).
Frequency: 100 Hz (6,000 r.p.m.).
Working Speed: Infinitely variable up to 85 ft/min (26 m/min).
Engine & Performance
Engine Model: Typically a Honda GX 160 (current models) or Honda GX 120 (older/specialized variants).
Power Output: Approximately 4.9 HP (3.6 kW) for the GX 160 version.
Travel Control: Uses a hydraulic control system for seamless switching between forward and reverse travel.
Key Features
Ultra-Low Vibration: Features exceptionally low hand-arm vibration (HAV) levels of 1.5 m/s², well below standard health and safety action limits.
Durability: Equipped with a one-piece cast exciter and a robust steel cage to protect the engine from site damage.
Maintenance: Designed with a self-adjusting centrifugal clutch to minimize V-belt maintenance.
Accessories: Can be outfitted with a water tank for asphalt work, a polyurethane pad for pavers, or an integrated wheel kit for transport.

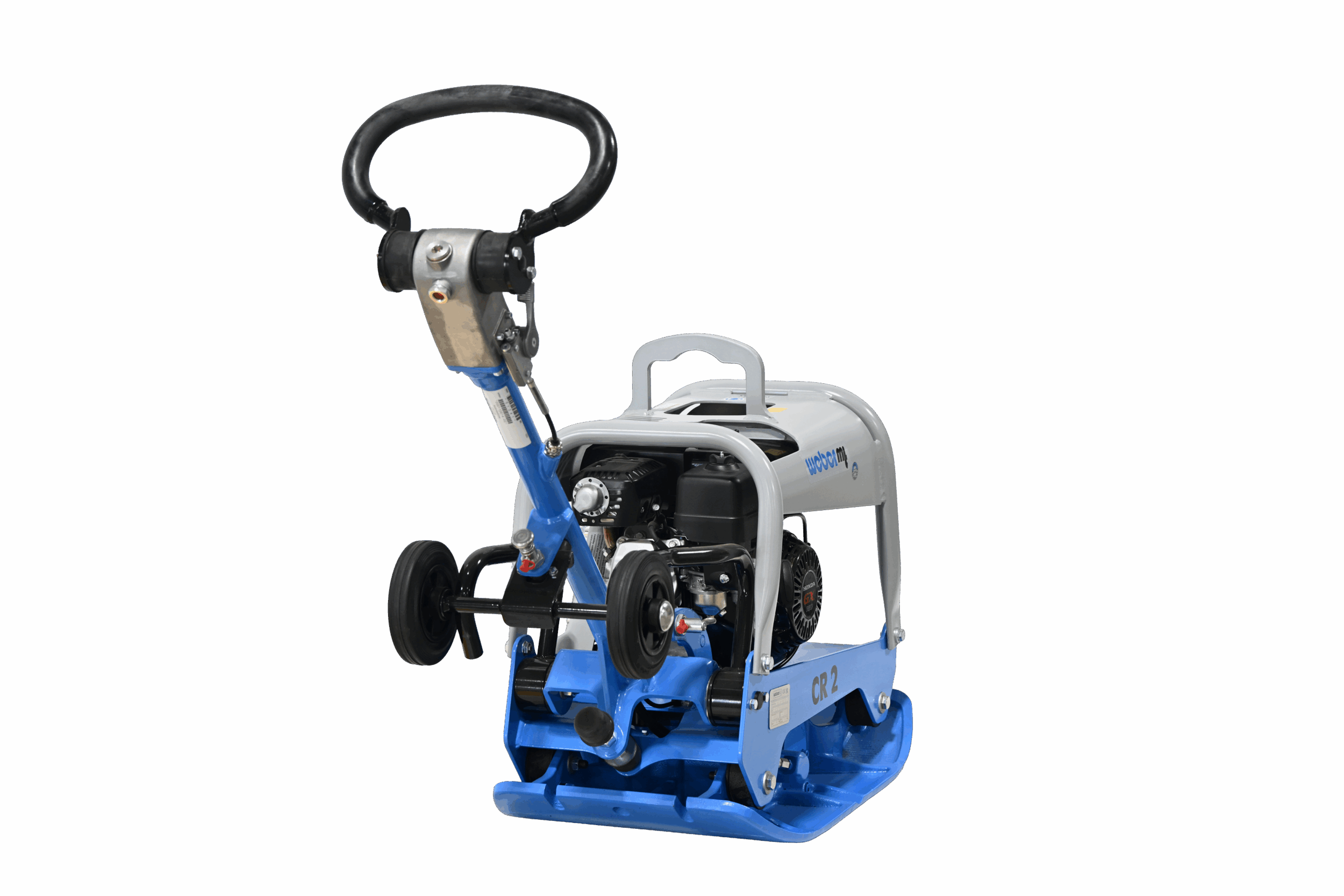

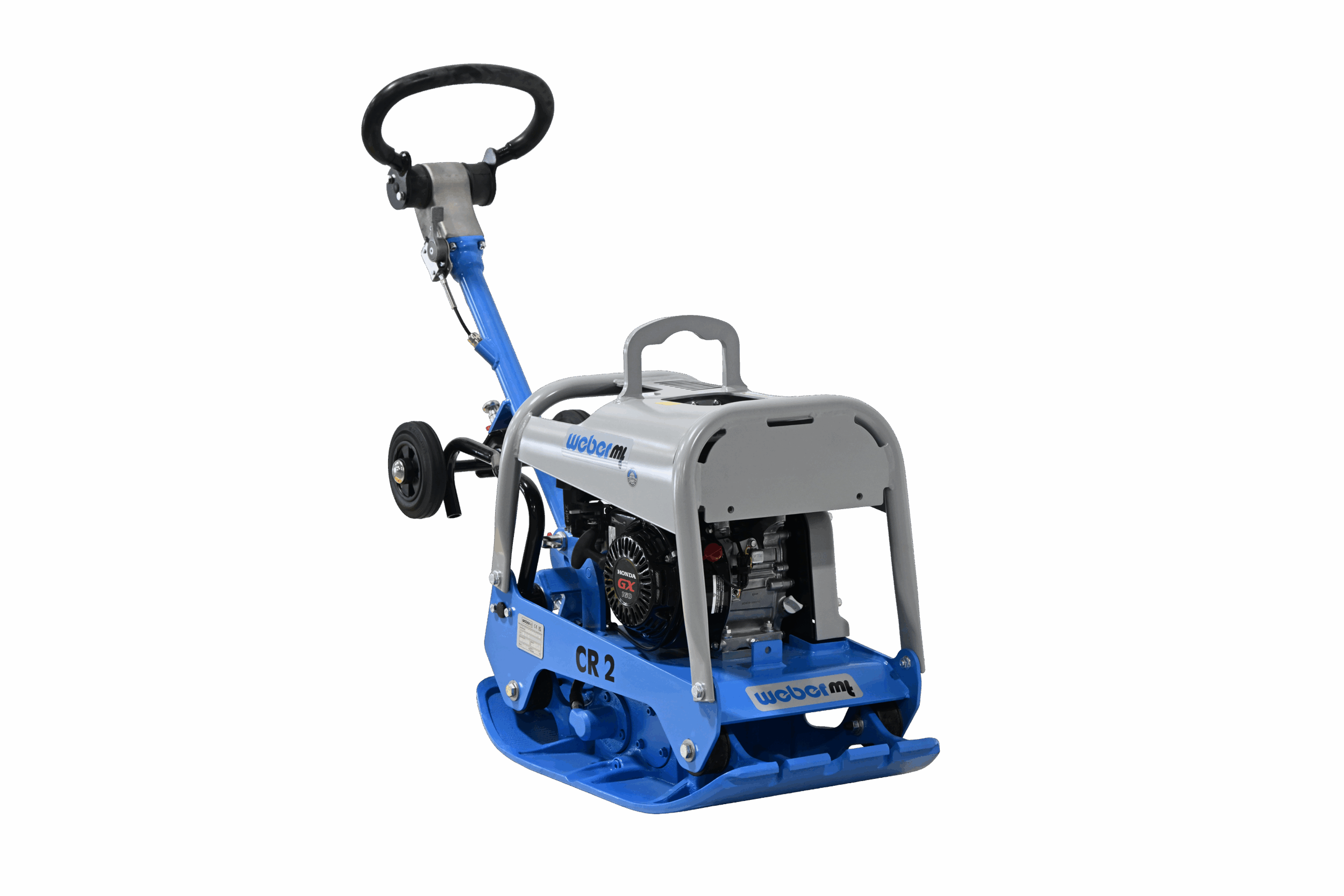

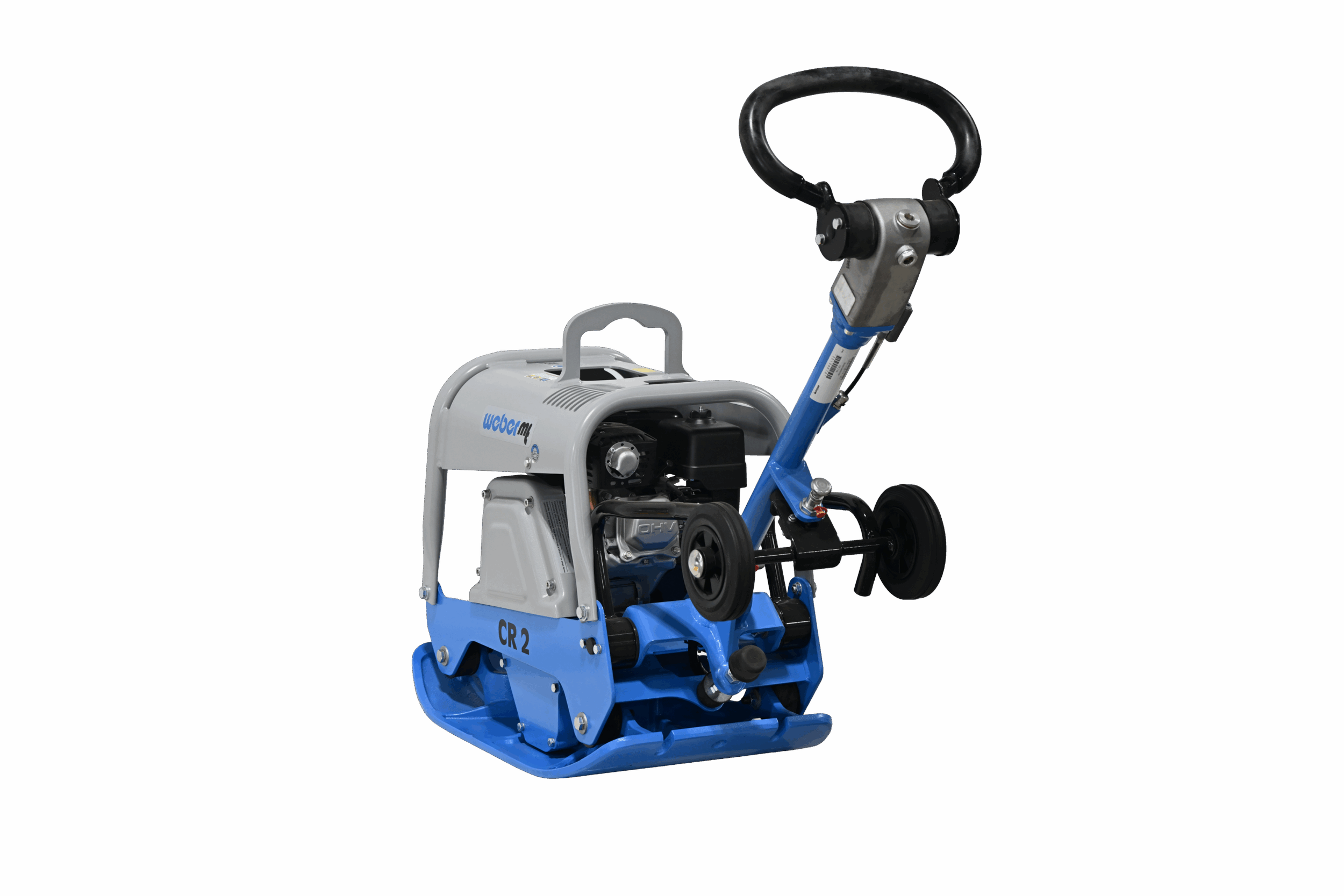

CR2 Reversible Plate
Core Technical Specifications (Gasoline & Diesel)
CR 2-III series vary depending on the engine type and plate width:
Operating Weight: 315 lbs - 362lbs (143–164 kg).
Centrifugal Force: 3,372 lbs (15 kN).
Working Width: 18 - 22inches (450 - 550 mm).
Frequency: 100 Hz (6,000 r.p.m.).
Working Speed: Infinitely variable up to 0 to 69 ft/min (0-21 m/min).
Engine & Performance
Engine Model: Typically a Honda GX 160 / Hatz 1B20
Power Output: Approximately 4.9 HP (3.6 kW) for the GX 160 version.
Power Output: Approximately 4.6 HP (3.4kW) Diesel
Travel Control: Uses a hydraulic control system for seamless switching between forward and reverse travel.
Key Features
Integrated Mobility: Every machine comes standard with a rugged wheel kit for easier transport on job sites.
Protection: The engine is housed within a protective steel frame and cover to prevent damage from external impacts.
Hydraulic Shifting: Offers infinitely variable forward and reverse travel for high precision in challenging or narrow areas.
Electric Option: Also available as the CR 2 DC, which uses a Honda GXE2.0 battery-powered motor for zero-emission operation.
Optional Accessories
Water Sprinkler System: Recommended for asphalt compaction to prevent sticking.
Polyurethane Pad: Used to protect the surface when working on pavers or decorative stones.

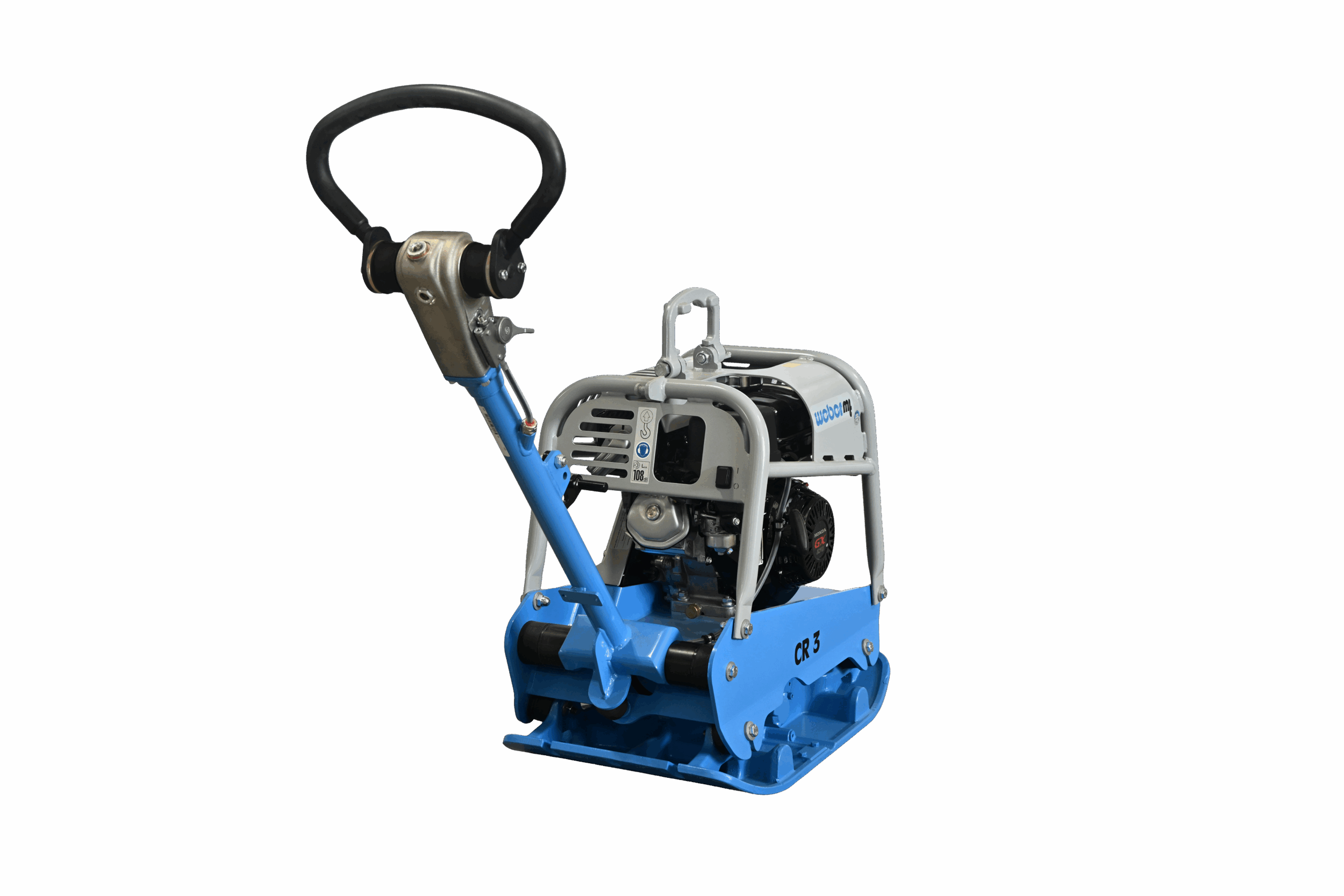

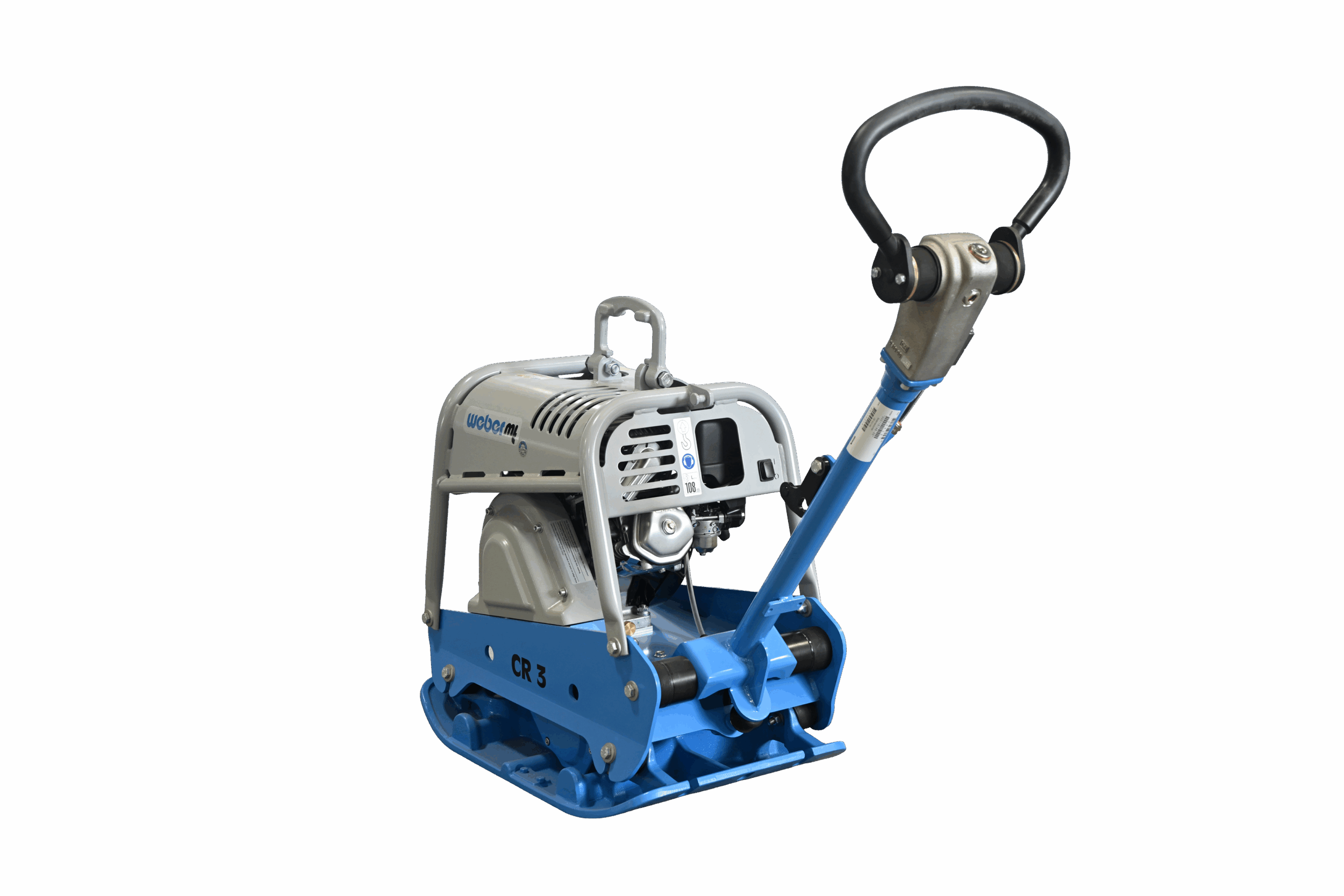

CR3 Reversible Plate
Core Technical Specifications
CR 3-III series vary depending on the engine type and plate width:
Centrifugal Force: 7,868–7,875 lbs (35 kN).
Operating Weight:
Gasoline (Hd): ~448–460 lbs (203–208 kg).
Diesel: ~458 lbs (208 kg) for manual start; up to 505 lbs (229 kg) for electric start.
Working Width: Standard 20 inches (500 mm); also available in 24 inches (600 mm) or 28 inches (700 mm) with extension plates.
Vibration Frequency: 80 Hz (4,800 r.p.m.).
Working Speed: Variable from 0 to 66–85 ft/min (0–20/26 m/min).
Key Features
Hydraulic Shifting: Provides infinitely variable forward and reverse travel for precise control in tight spaces.
Low Vibration: Engineered with a vibration-damped handle to keep hand-arm vibration (HAV) levels below 2.5 m/s², allowing for longer operation without fatigue.
Durability: Features a one-piece cast exciter and base plate for high reliability.
Transport: Equipped with a foldable lifting eye and a sturdy protection frame for secure site movement.
Available Accessories
Integrated Wheel Kit: For easier mobility around the job site.
Polyurethane Pad: Essential for protecting paving stones or decorative surfaces.
Water Sprinkler System: Typically used for asphalt applications to prevent sticking.

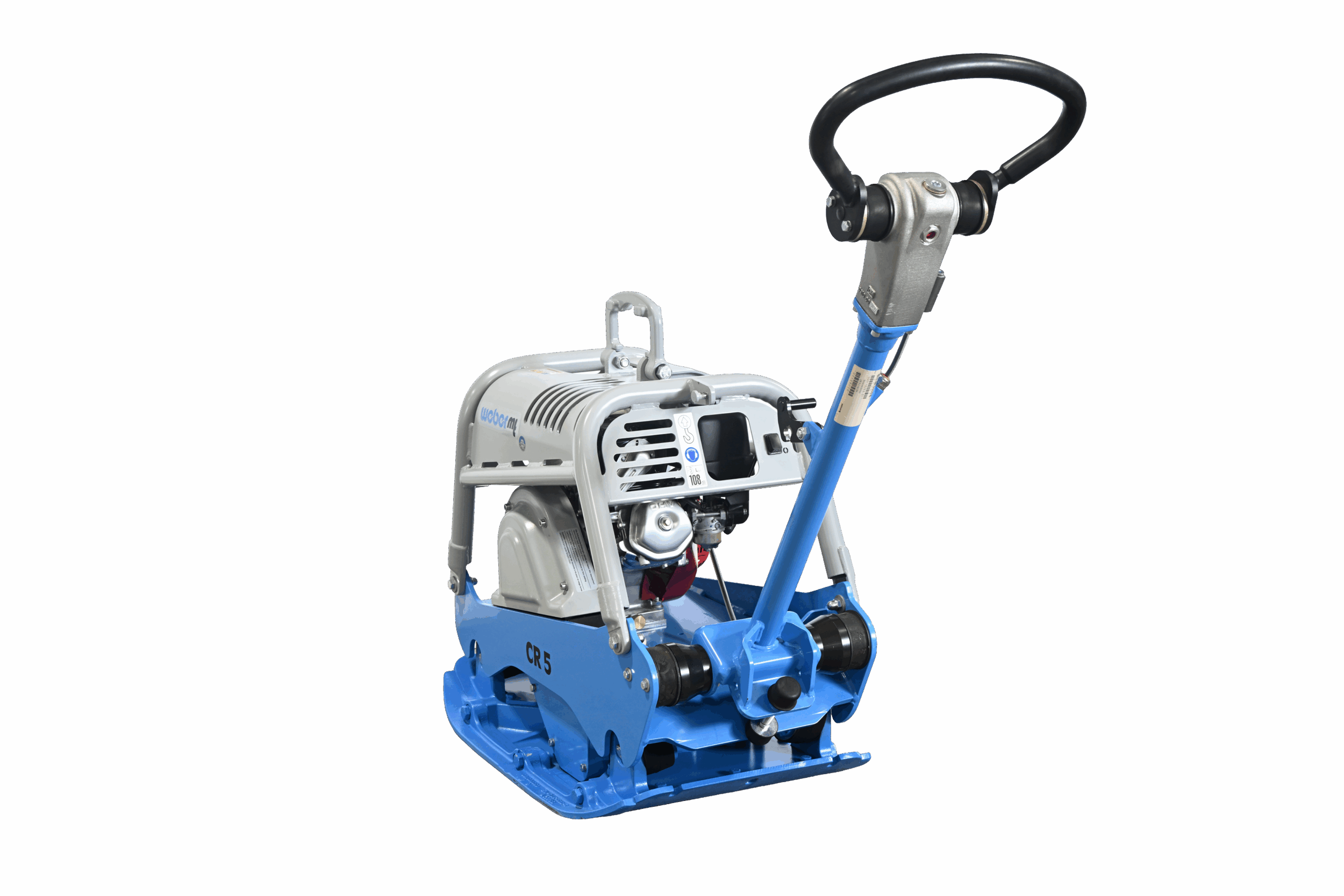

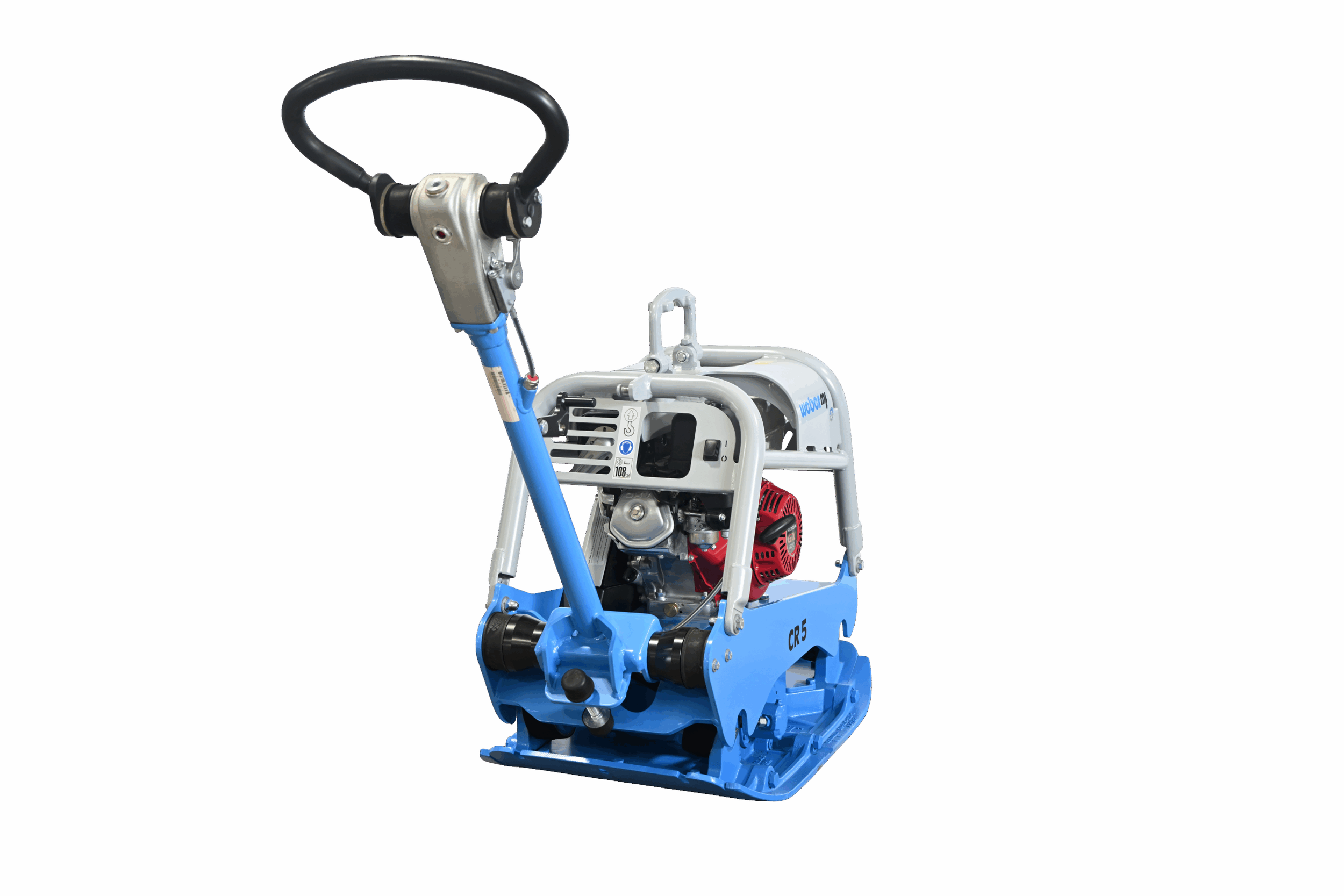

CR5 Reversible Plate
Core Technical Specifications
Most models in the CR 5 series share these baseline performance metrics:
Centrifugal Force: 42 kN (approximately 9,450–10,150 lbs).
Operating Weight:
Gasoline (Hd): ~600-620 lbs (273-281kg).
Diesel: ~618-686 lbs (281-311 kg) for manual start
Working Width: 550 mm (22 in), extendable to 700 mm (28 in) with extension plates.
Frequency: 75 Hz (4,200 rpm).
Working Speed: 0–24 m/min (0–79 ft/min).
Key Features
Hydraulic Control: Features infinitely variable hydraulic forward and reverse travel for precise maneuvering.
Operator Comfort: Equipped with a height-adjustable, low-vibration (anti-vibe) guide bar to reduce user fatigue.
Engine Protection: Includes a robust steel protection frame and cover to prevent job site damage.
Maintenance: Features a self-adjusting centrifugal clutch for reduced maintenance needs.
Compaction Control: Often available with the COMPATROL compaction control system to monitor progress in real-time.
