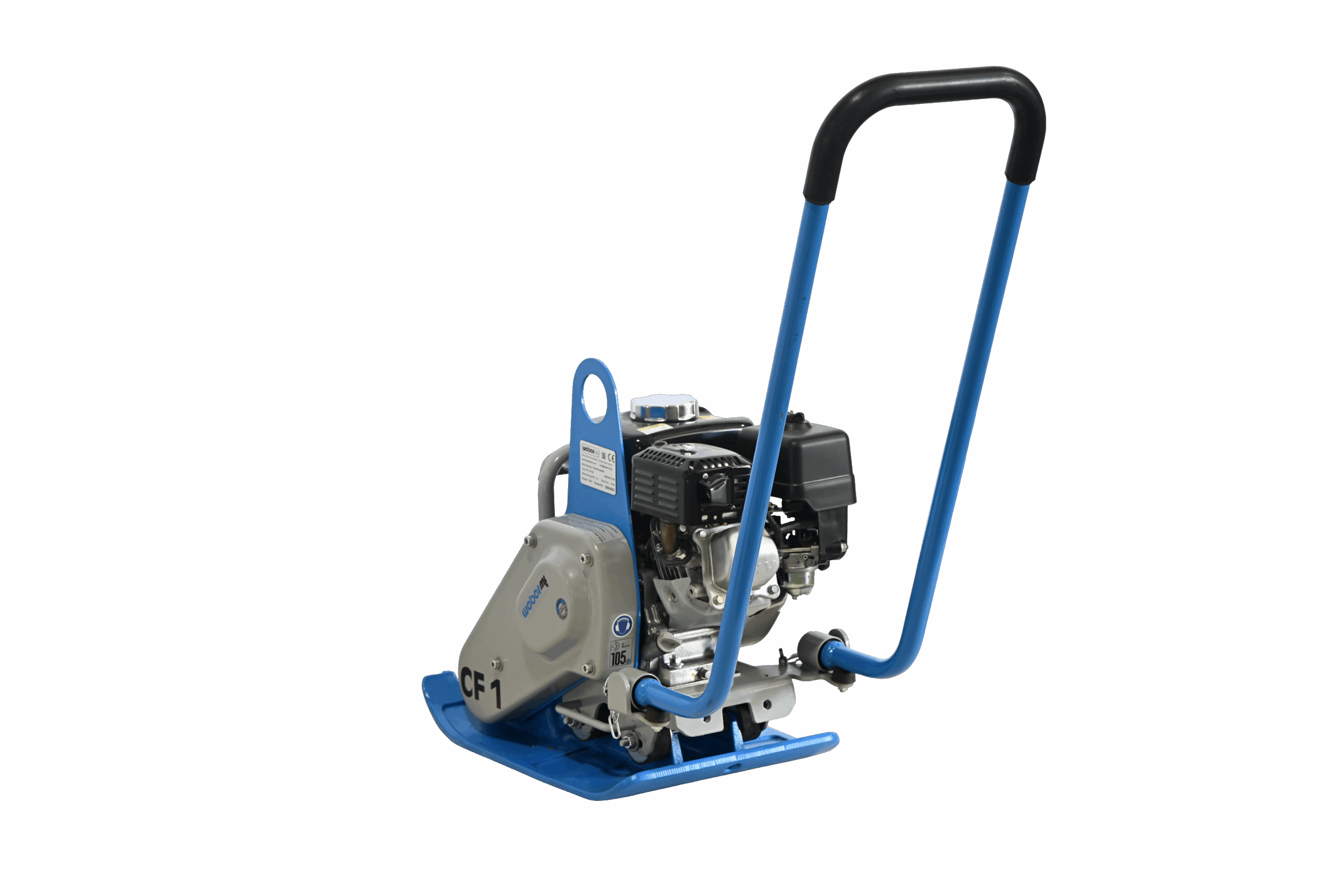

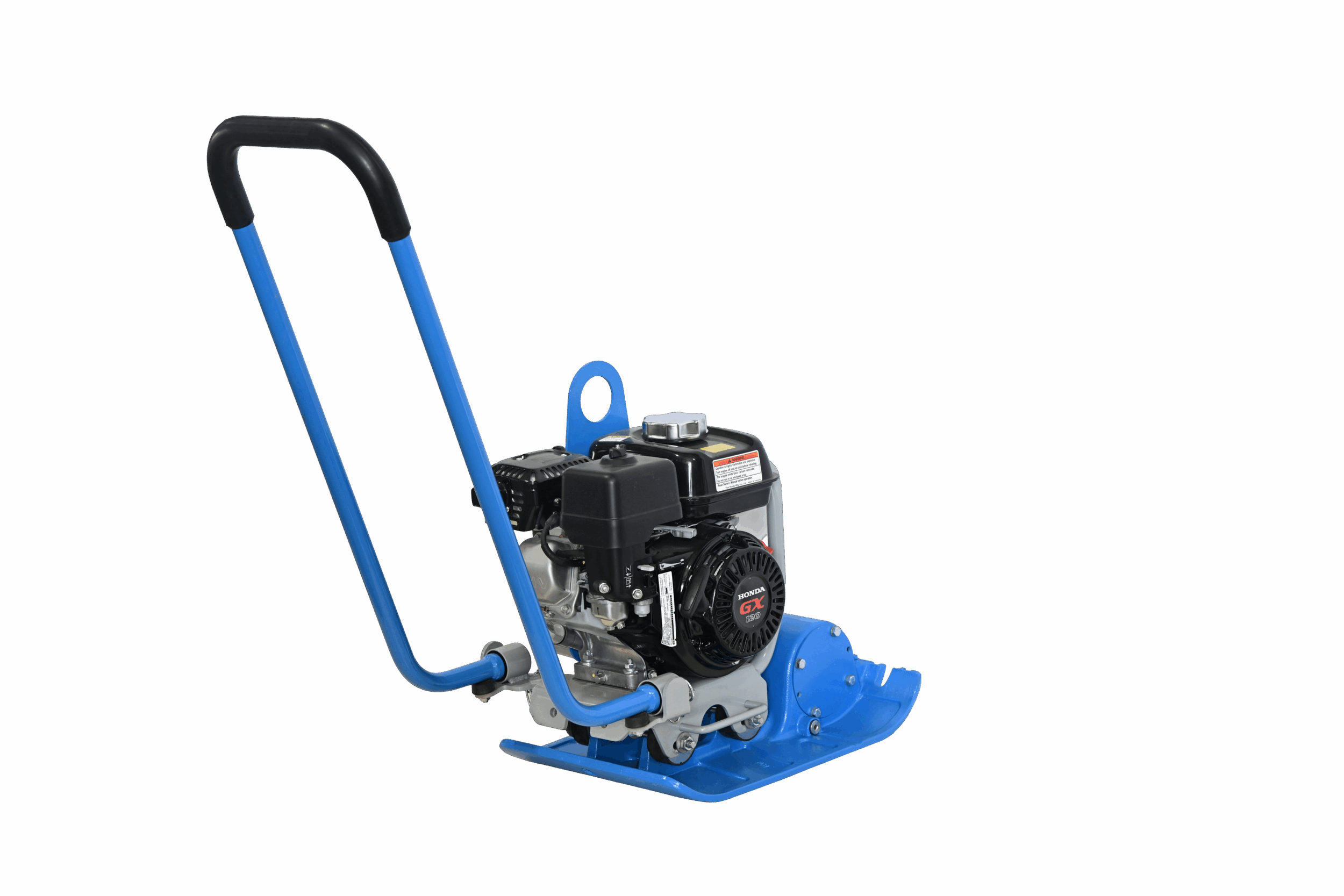

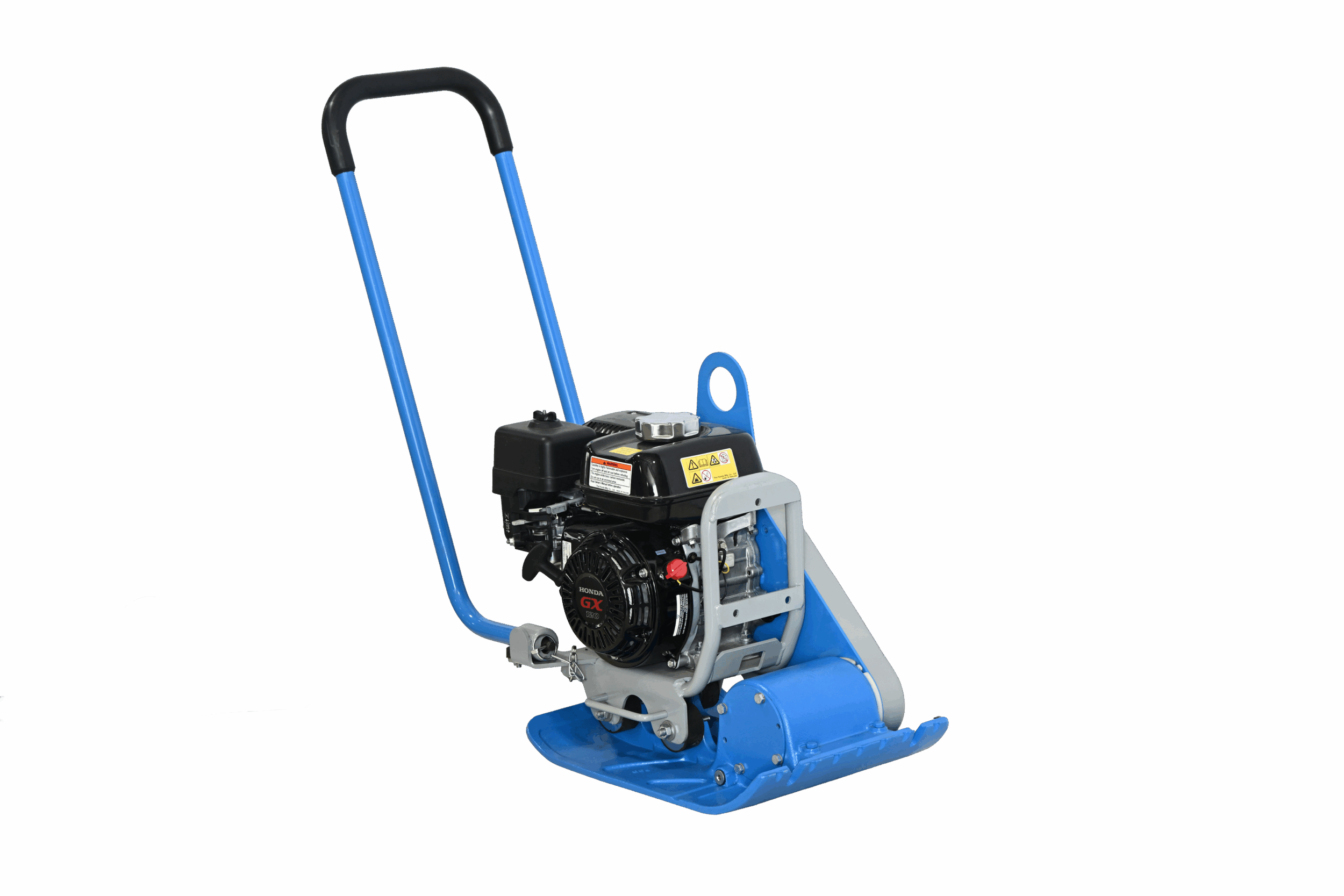

CF 1 Forward Plate
Core Technical Specifications
Operating Weight: 132-150 lbs (132-150kg)
Centrifugal Force: 2,248 lbs (10-11 Kn)
Working Width: 14-16 in (350-400 mm)
Frequency: 95 Hz
Engine & Performance
Engine Model: Typically a Honda GX 120
Power Output: Approximately. 2.4-3.5 HP (1.8-2.6 Kw
Key Features
Portability: Features a removable guide bar and integrated lifting handles, making it small enough to transport in a car trunk.
Operator Comfort: Equipped with a foldable, low-vibration guide bar to reduce user fatigue.
Engine Protection: Standard models include a robust steel frame and a closed V-belt guard to prevent damage on site.
Optional Accessories:
Integrated Wheel Kit: For easier transport between work areas.
Polyurethane Pad: Essential for protecting paving stones during compaction.
Water Sprinkler System: Often used for asphalt applications

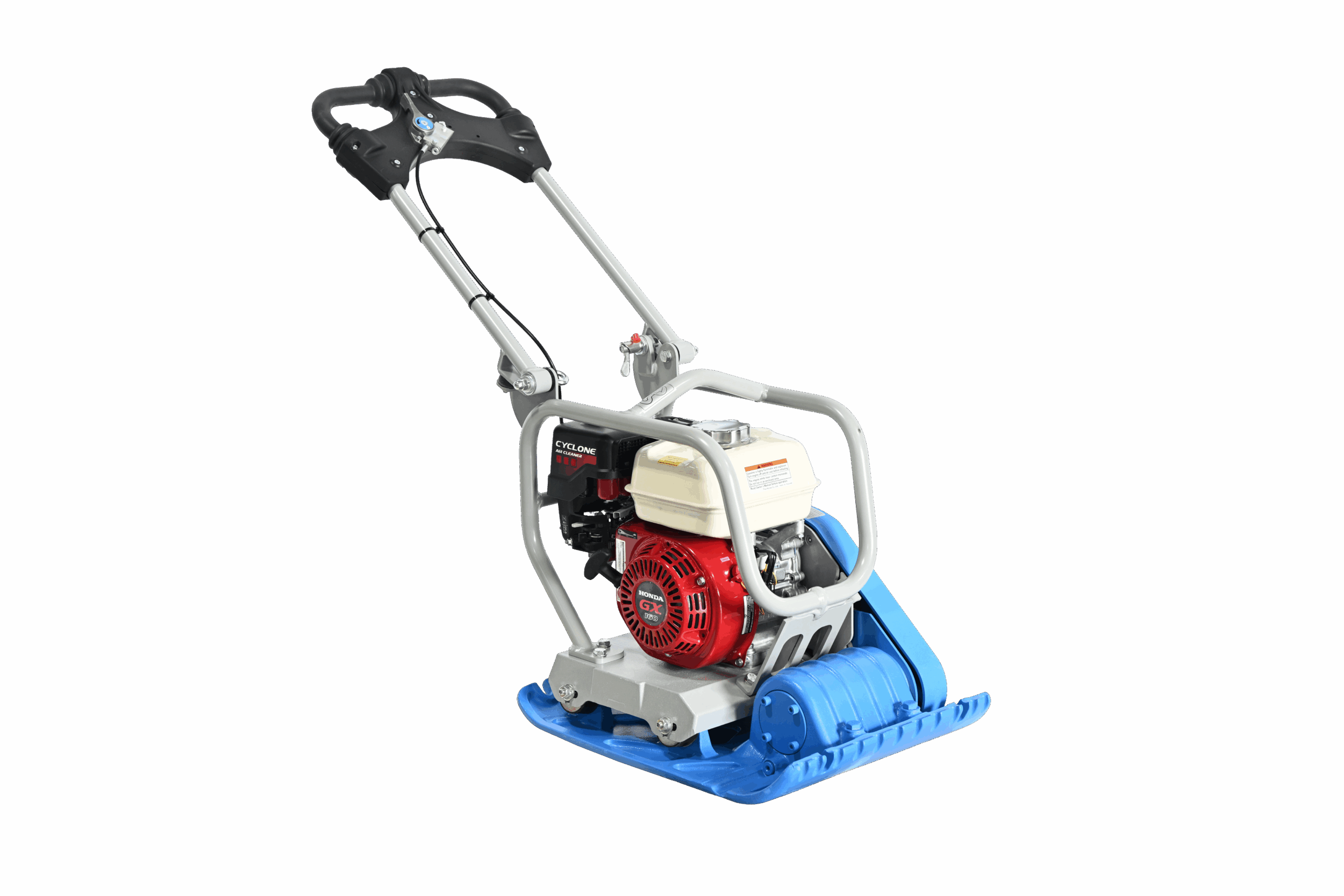

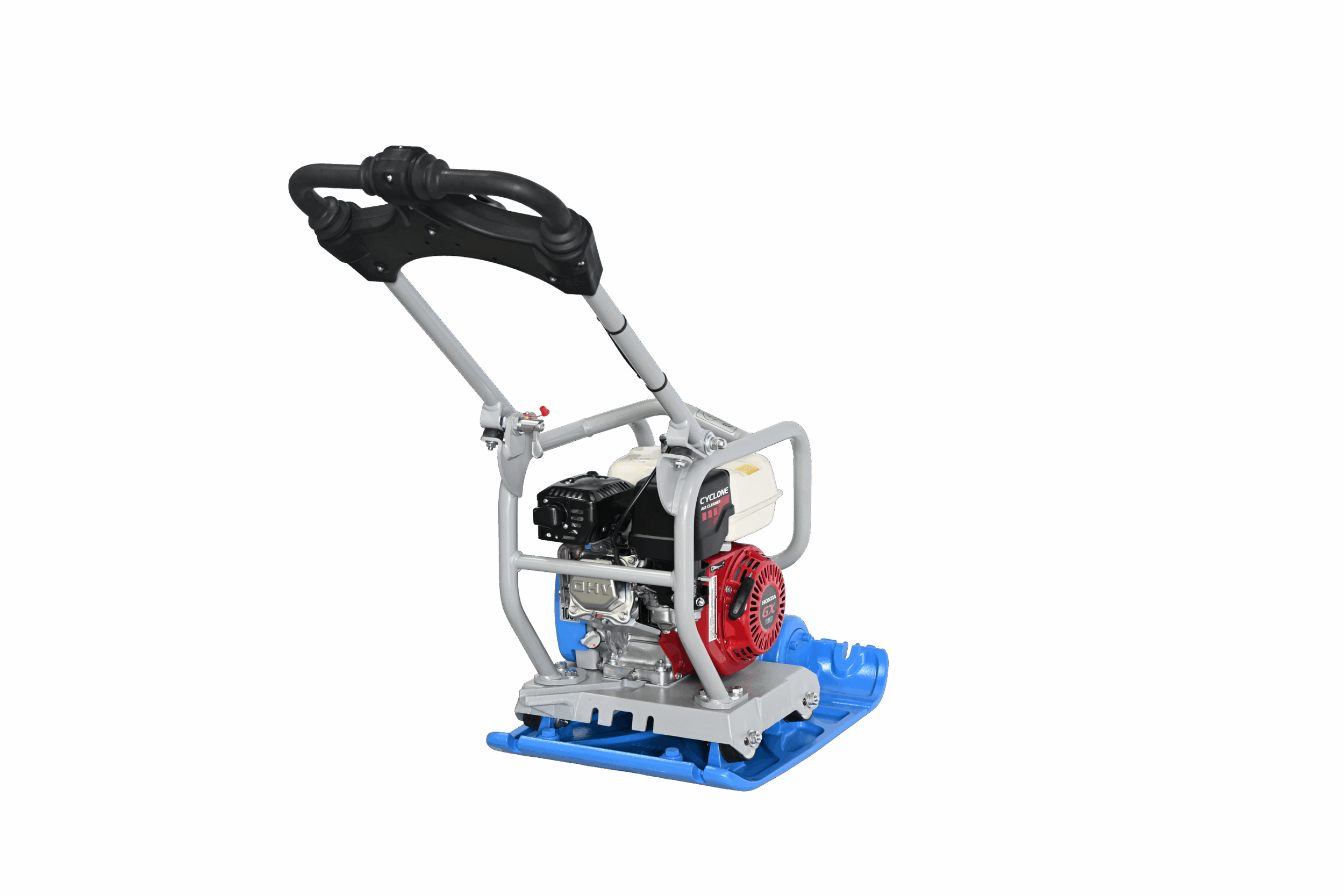

CF 2 Forward Plate
Core Technical Specifications
Operating Weight: 183 lbs (83kg)
Centrifugal Force: 3,372 lbs (15 Kn)
Working Width: 18 in (450 mm)
Frequency: 95 Hz
Working Speed: 26m/min
Engine & Performance
Engine Model: Typically a Honda GX 160
Power Output: Approximately. 4.9 HP (3.6 kW)
Key Features
Operating Comfort: Features a registered design anti-vibration handle to improve user comfort during long shifts.
Portability: Equipped with a folding guide bar and compact dimensions to facilitate transport in standard vehicles.
Durable Design: Includes a sturdy protective frame with a central lifting point and a one-piece exciter and baseplate.
Optional Accessories: Can be outfitted with a 12-litre water tank for asphalt work, a polyurethane pad for pavers, or a wheel kit for easier jobsite movement.

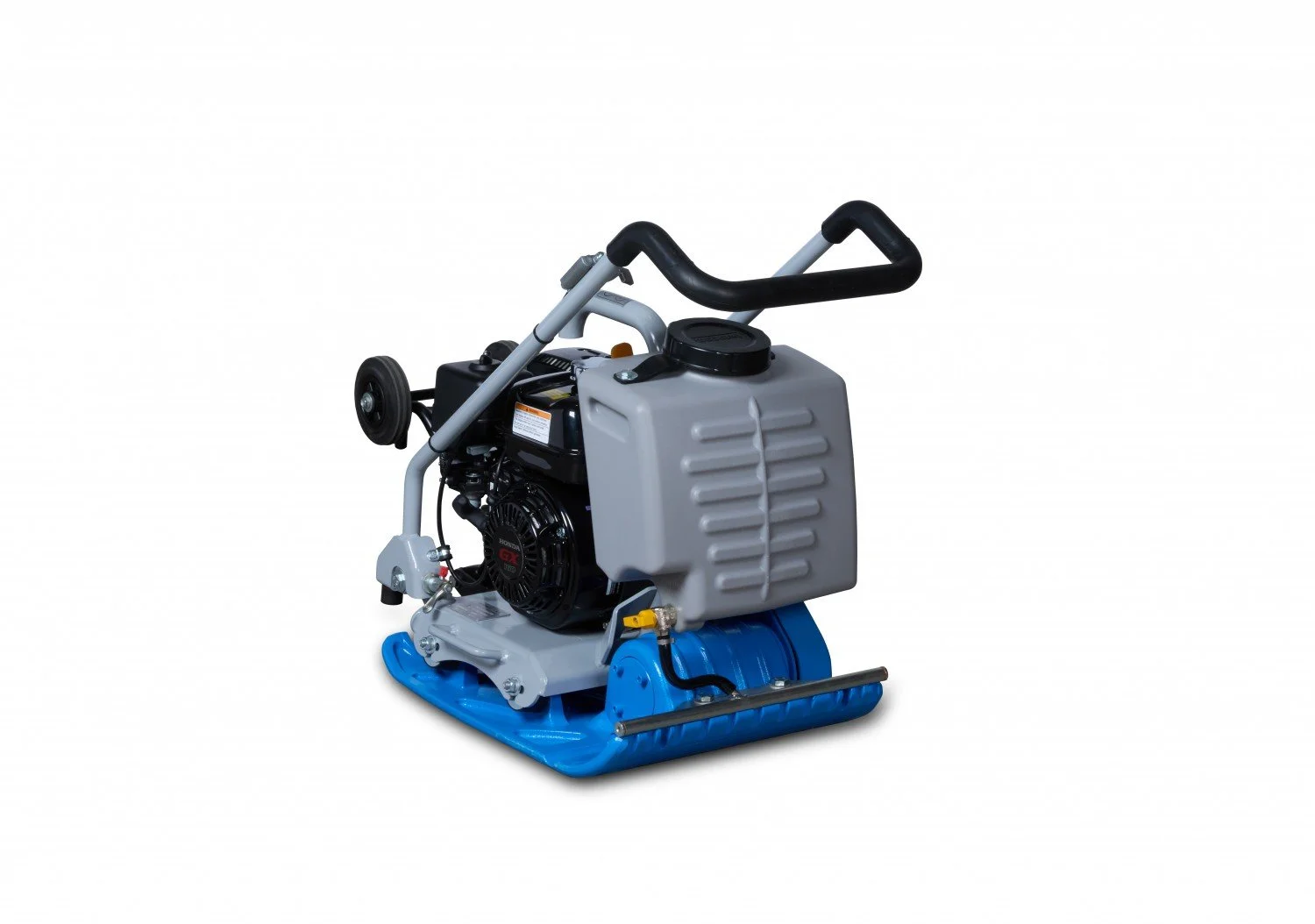

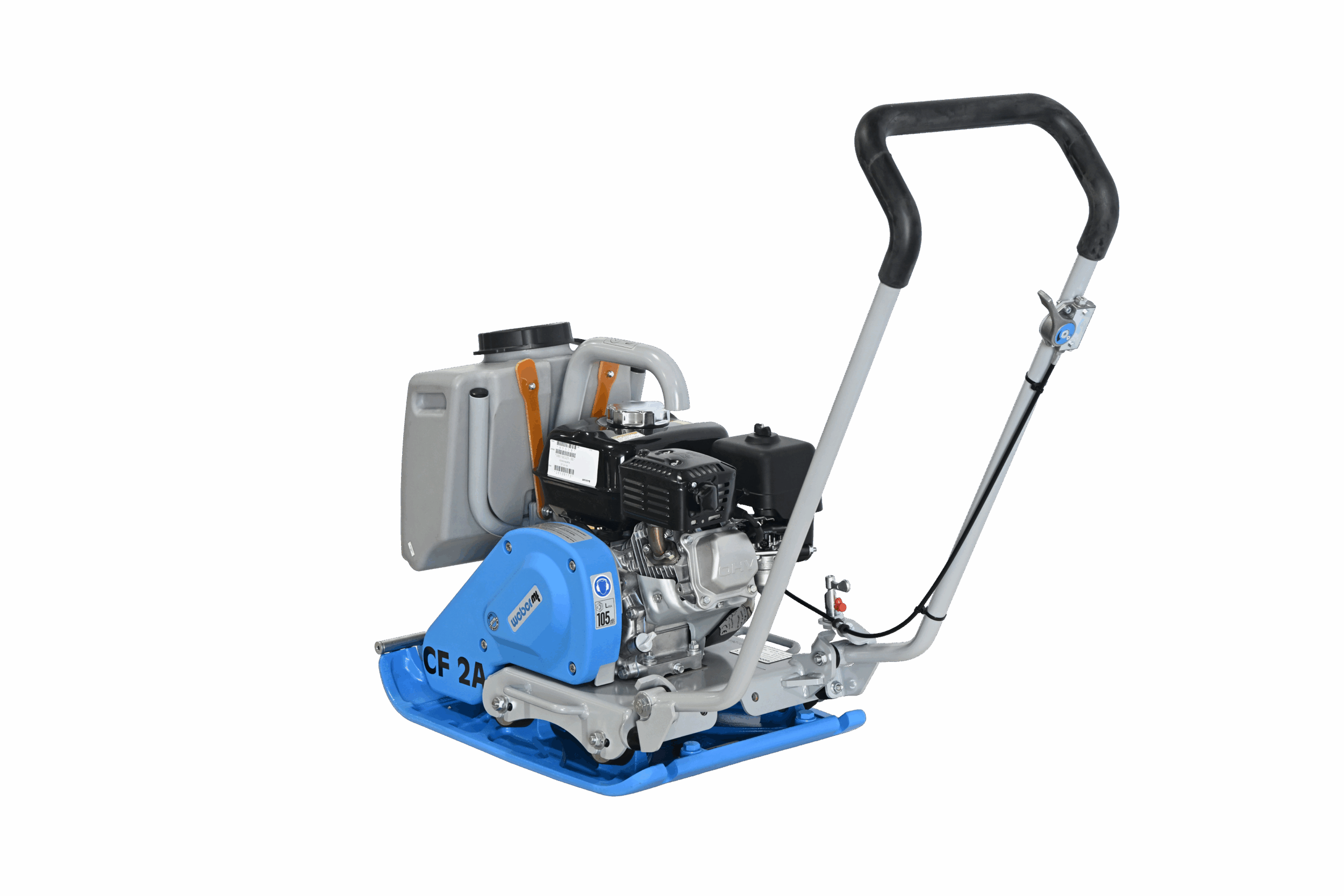

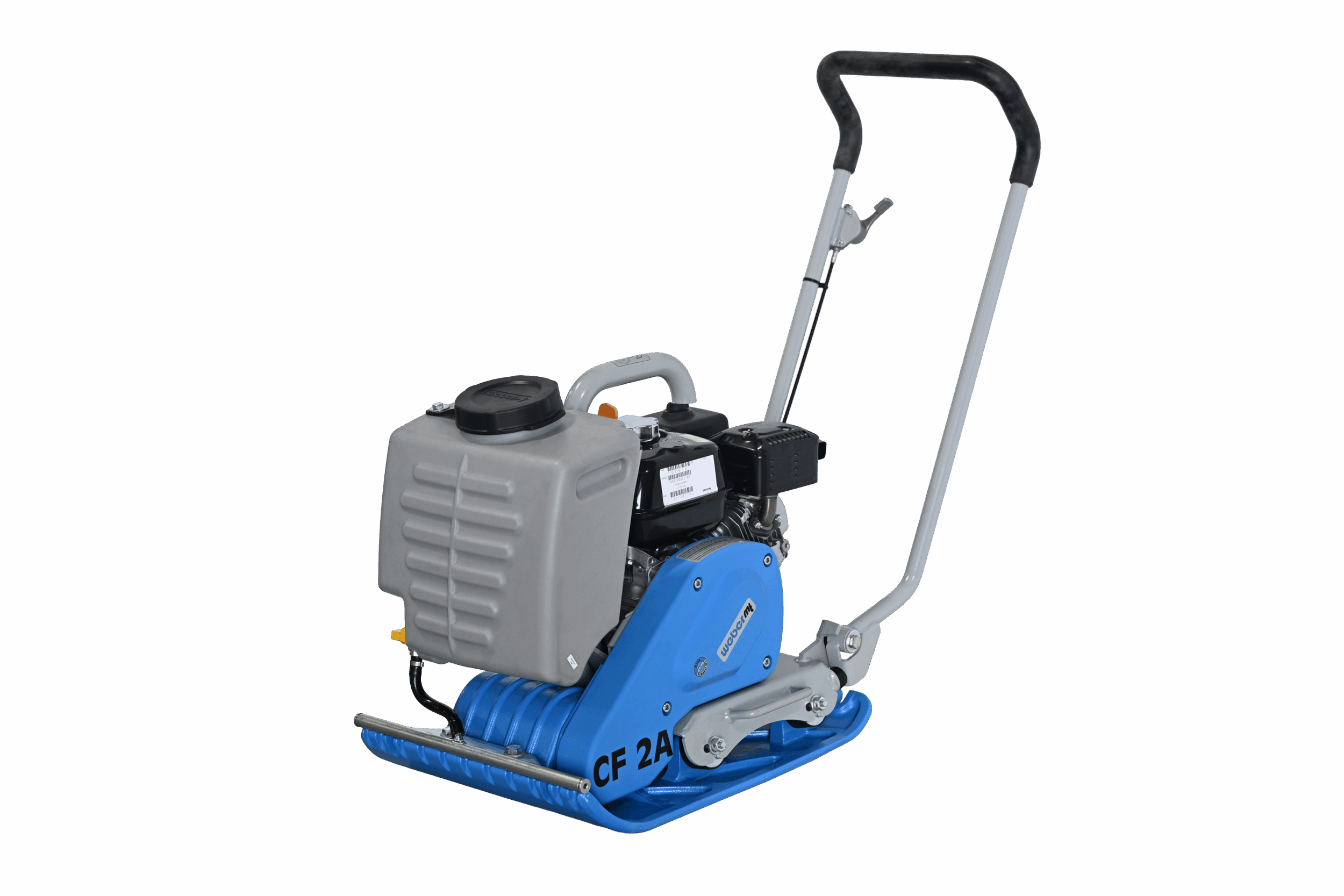

CF 2A Forward Plate
Core Technical Specifications
Operating Weight: 181 lbs (83kg)
Centrifugal Force: 3,372 lbs (15 Kn)
Working Width: 18 in (450 mm)
Frequency: 95 Hz
Working Speed: 26m/min
Engine & Performance
Engine Model: Typically a Honda GX 160
Power Output: Approximately. 4.9 HP (3.6 kW)
Specialized Asphalt Features
Modified Base Plate: The edges are rounded or geometrically adjusted to prevent the plate from digging into or leaving marks on hot asphalt.
Integrated Water System: Comes standard with a water tank and sprinkler system to keep the base plate cool and prevent asphalt from sticking.
Specialized Lift Handle: Features a handle mounted on the back of the plate, allowing operators to lift the machine without marring finished surfaces.
Enhanced Handling: Includes a tweaked guide bar grip for better ergonomic control during precision work.

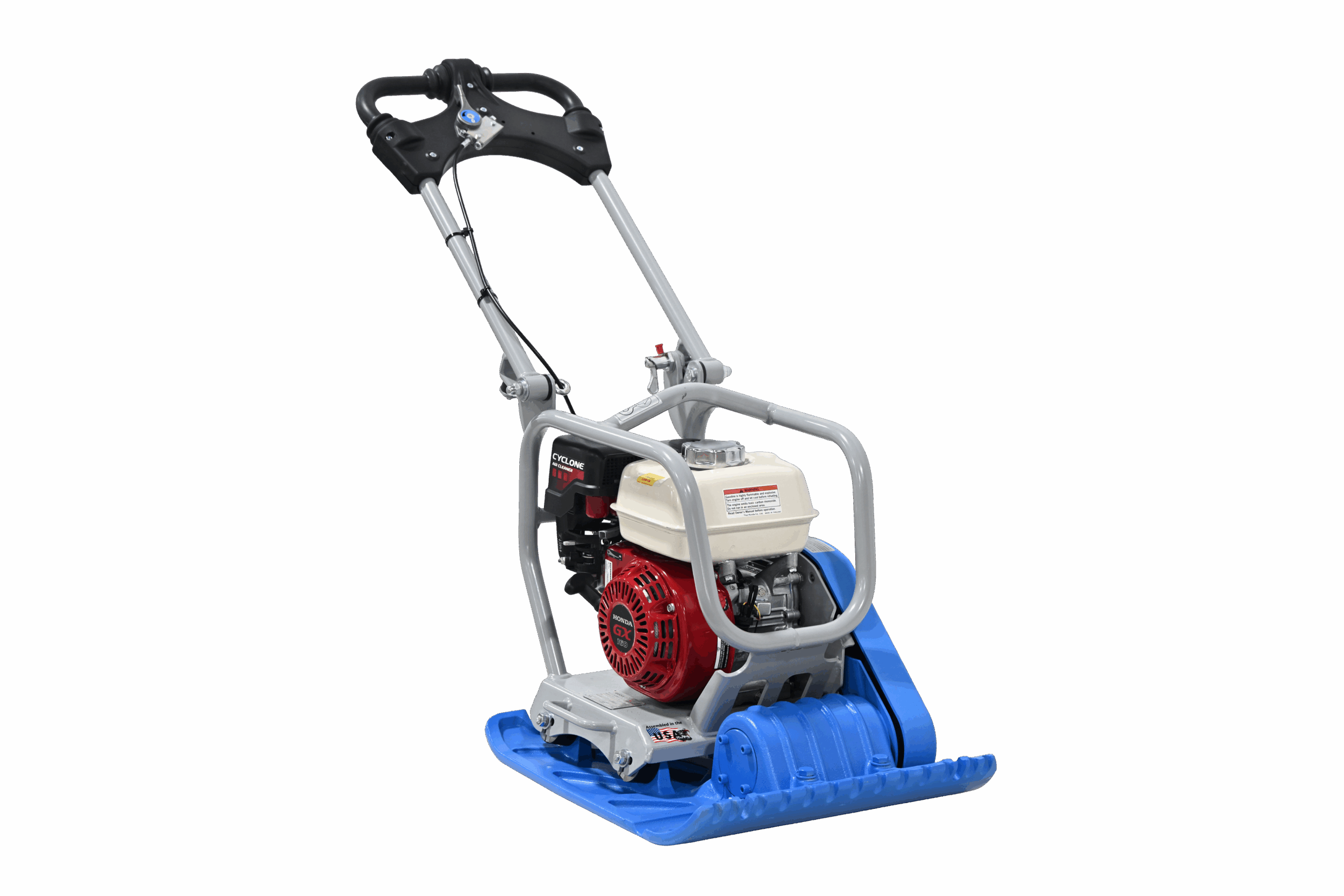

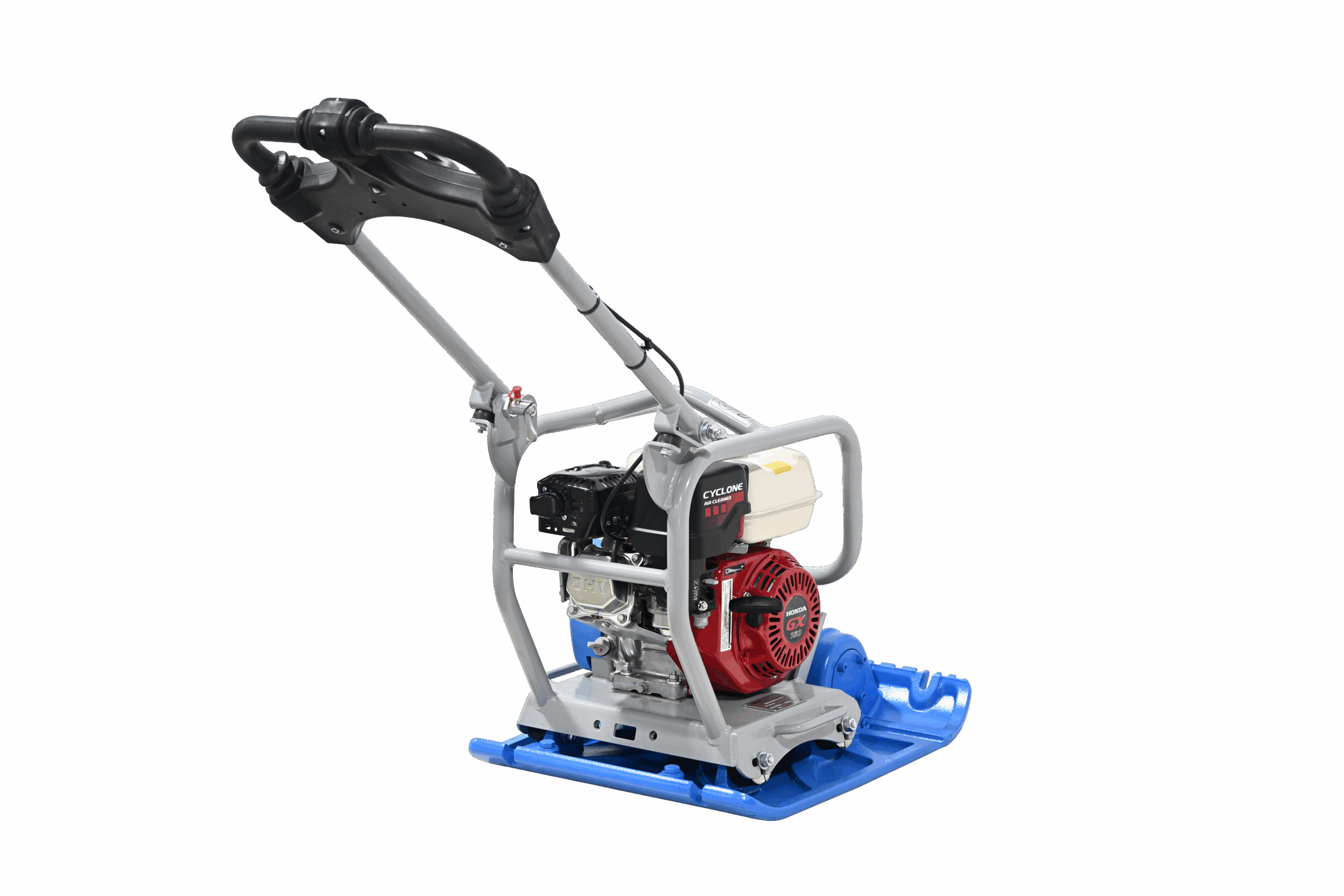

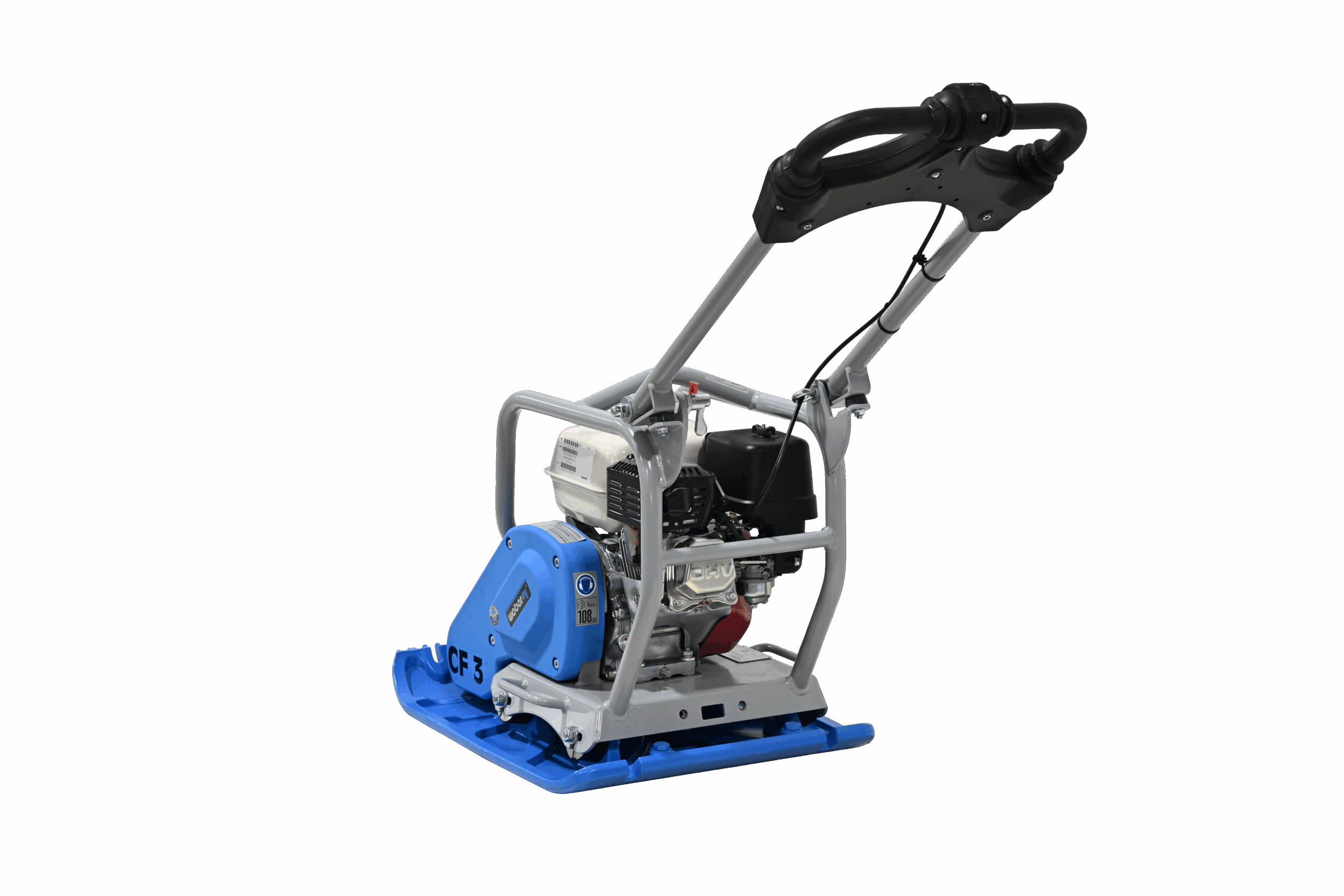

CF 3 Forward Plate
Core Technical Specifications
Operating Weight: 183 lbs (83kg)
Centrifugal Force: 3,372 lbs (15 Kn)
Working Width: 18 in (450 mm)
Frequency: 95 Hz
Working Speed: 26m/min
Engine & Performance
Engine Model: Typically a Honda GX 160
Power Output: Approximately. 4.9 HP (3.6 kW)
Specialized Asphalt Features
Modified Base Plate: The edges are rounded or geometrically adjusted to prevent the plate from digging into or leaving marks on hot asphalt.
Integrated Water System: Comes standard with a water tank and sprinkler system to keep the base plate cool and prevent asphalt from sticking.
Specialized Lift Handle: Features a handle mounted on the back of the plate, allowing operators to lift the machine without marring finished surfaces.
Enhanced Handling: Includes a tweaked guide bar grip for better ergonomic control during precision work.

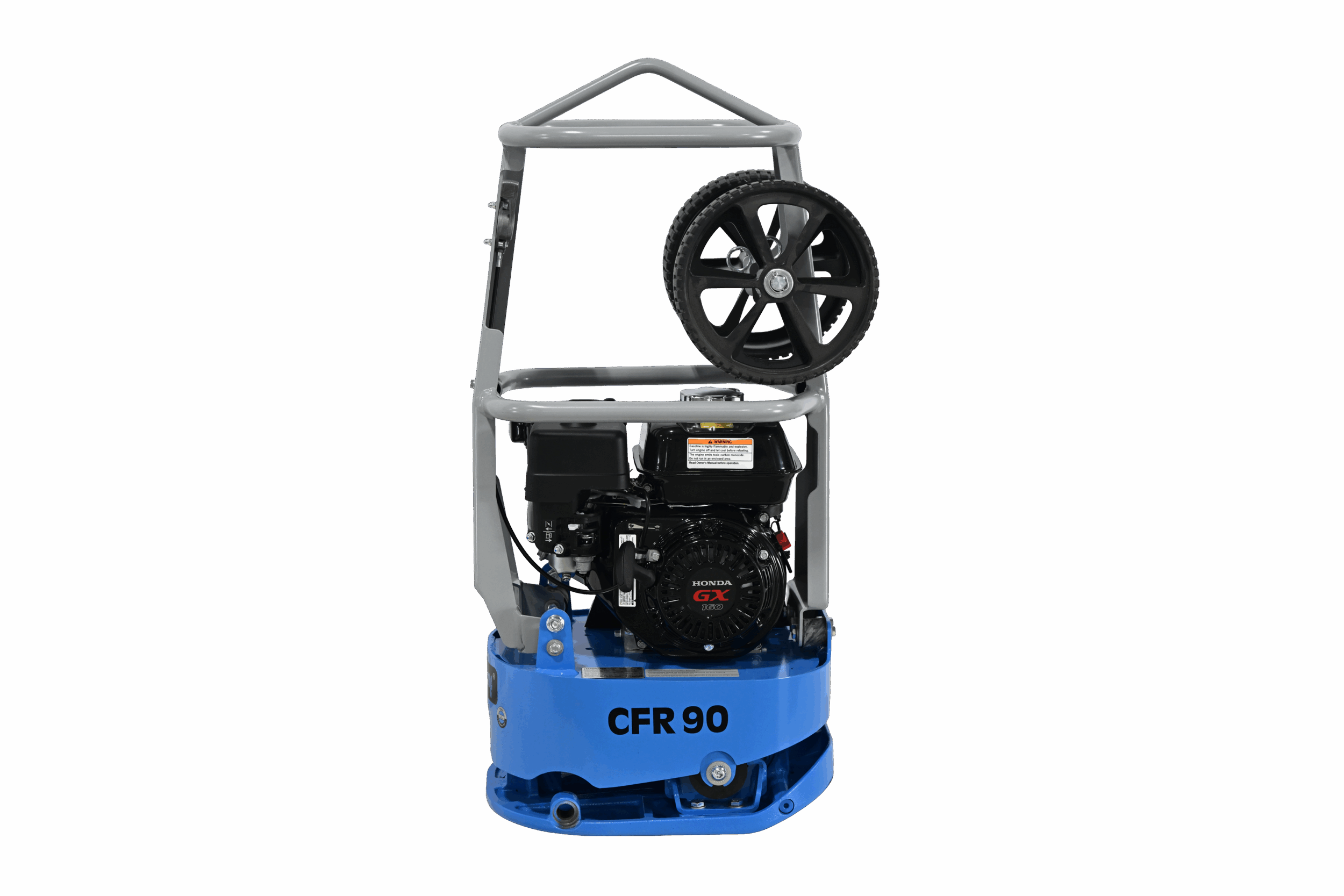

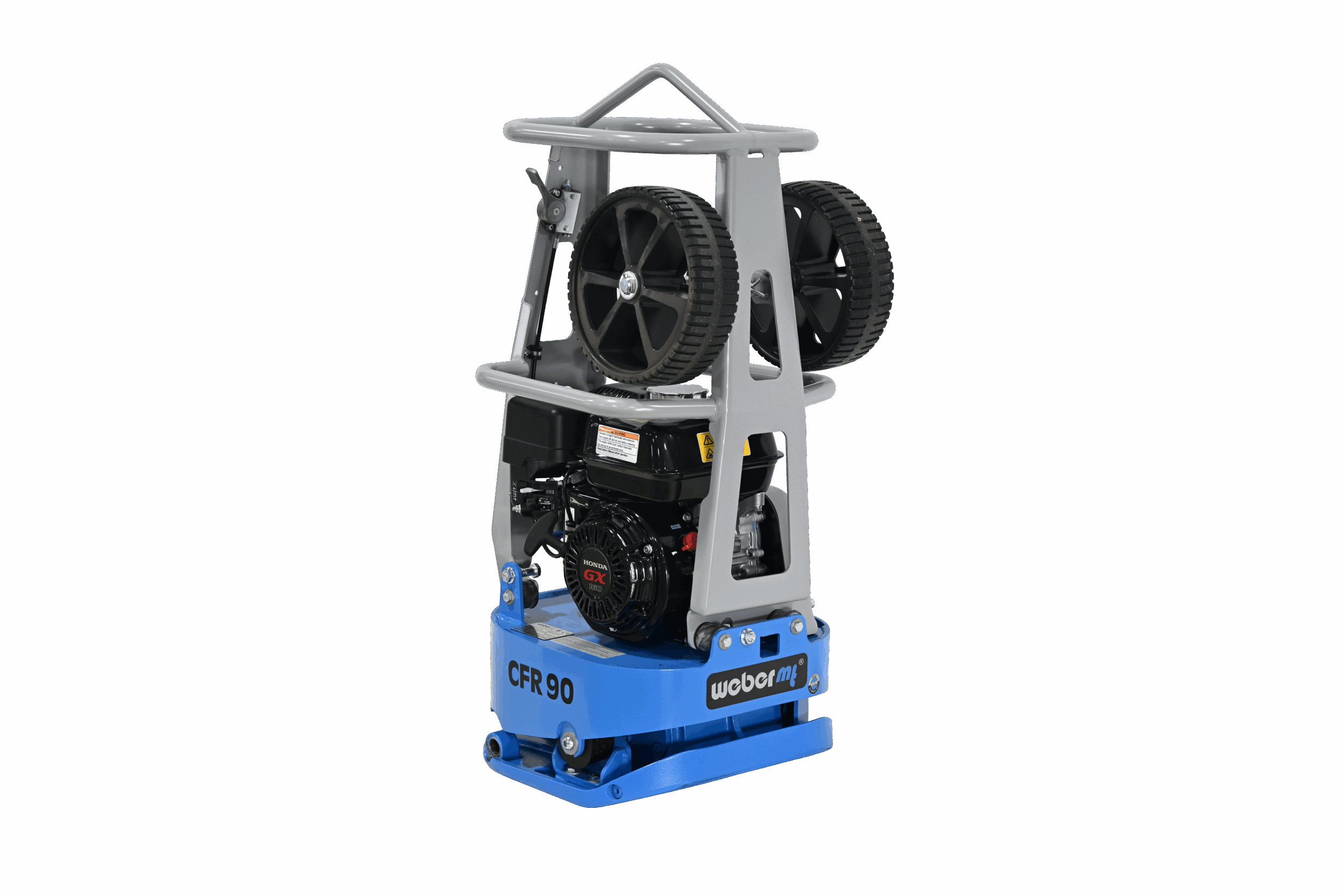

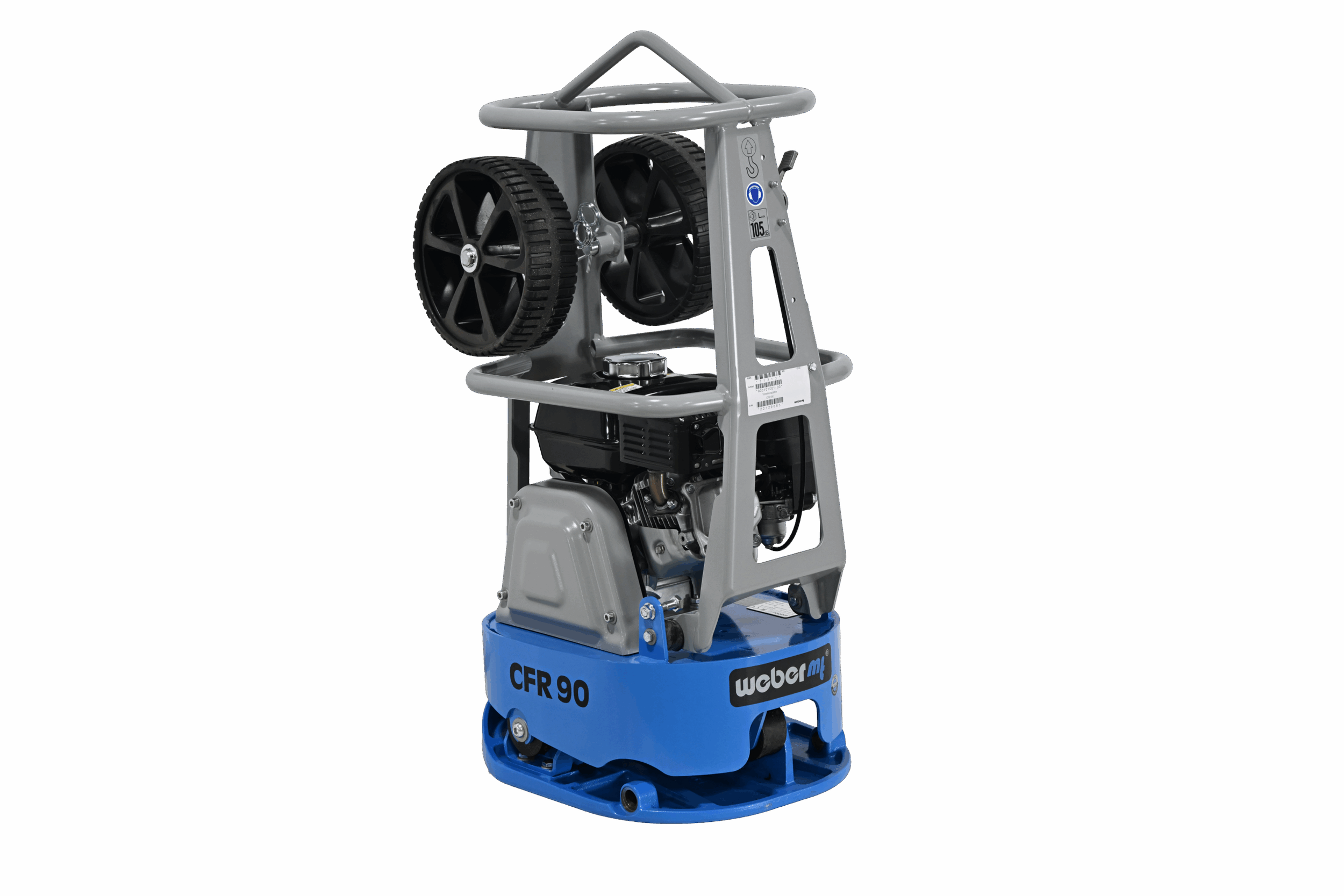

CF 3 Forward Plate
Core Technical Specifications
Operating Weight: 198 lbs (90kg)
Centrifugal Force: 3,147 lbs (15 Kn)
Working Dimensions (L x W x H): 18” x 16” x 38”
Frequency: 85 Hz
Working Speed: 26m/min
Engine & Performance
Engine Model: Typically a Honda GX 160
Power Output: Approximately. 4.9 HP (3.6 kW)
Key Features
Maneuverability: The unique round plate geometry enables the machine to turn easily in tight corners and trenches where standard rectangular plates struggle.
Integrated Mobility: Comes standard with an attached wheel kit for easy transport around the jobsite.
Operator Comfort: Features a low-vibration guide bar that reduces hand-arm vibration (HAV) to approximately
, allowing for longer work sessions.
Engine Protection: Built with a heavy-duty protective cage and engine protection frame to ensure durability in harsh rental or construction environments.
