Operating Mass: 1,595 kg (3,516 lbs)
Compaction Width: 610/850 mm (adjustable with extensions) or 33 inches.
Engine: Kubota D 1005 (17.2 hp @ 2600 rpm) or Kohler KDW 1003 (17.2 hp @ 2600 rpm), water-cooled diesel.
Compaction Force (Centrifugal): TheD.ONE
(US version) has an approximate compaction force of 16,200 lbs (72 kN approx).
Features: Includes eco mode, automatic shutdown at low oil levels, dual directed-vibration system, and two amplitudes.
Dynapac Remote Trench Packers
Operating Weight: 2,800 lbs (1,270 kg).
Engine: Honda 4-stroke gasoline engine with 19 hp gross power.
Drum Width: 35.5 inches (90 cm).
Drum Diameter: 23 inches (58 cm).
Centrifugal Force: Approximately 3,800 lbs (1,724 kg).
Gradeability: Approximately 35%.
Dynapac CC900 36” Double Drum
Dynapac CC1000D 39” Double Drum
Operating Weight: 3,858 lbs (1,700 kg).
Engine: Kubota D1105-E4B T4f diesel, 24 hp
Drum Width: 39 inches
Drum Diameter: 23 inches (58 cm).
Centrifugal Force: Approximately 3,800 lbs (1,724 kg).
Gradeability: Approximately 40%.
Operating Weight: Approximately 10,500 lbs (4,763 kg) with ROPS (Roll Over Protective Structure).
Engine Power: The model uses a Kubota V 3307 CR-TE4 or Yanmar 4TNV98CT-PDCE water-cooled turbo diesel engine with a rated power of 72 to 75 hp.
Drum Dimensions:
Drum Width: 54 inches (137 cm).
Drum Diameter: 39 inches (99 cm).
Pad Height: 3 inches (8 cm).
Dyanpac CA1300PD 54” Pad Foot
Operating Weight: Approximately 10,500 lbs (4,763 kg) with ROPS (Roll Over Protective Structure).
Engine Power: The model uses a Kubota V 3307 CR-TE4 or Yanmar 4TNV98CT-PDCE water-cooled turbo diesel engine with a rated power of 72 to 75 hp.
Drum Dimensions:
Drum Width: 54 inches (137 cm).
Drum Diameter: 39 inches (99 cm).

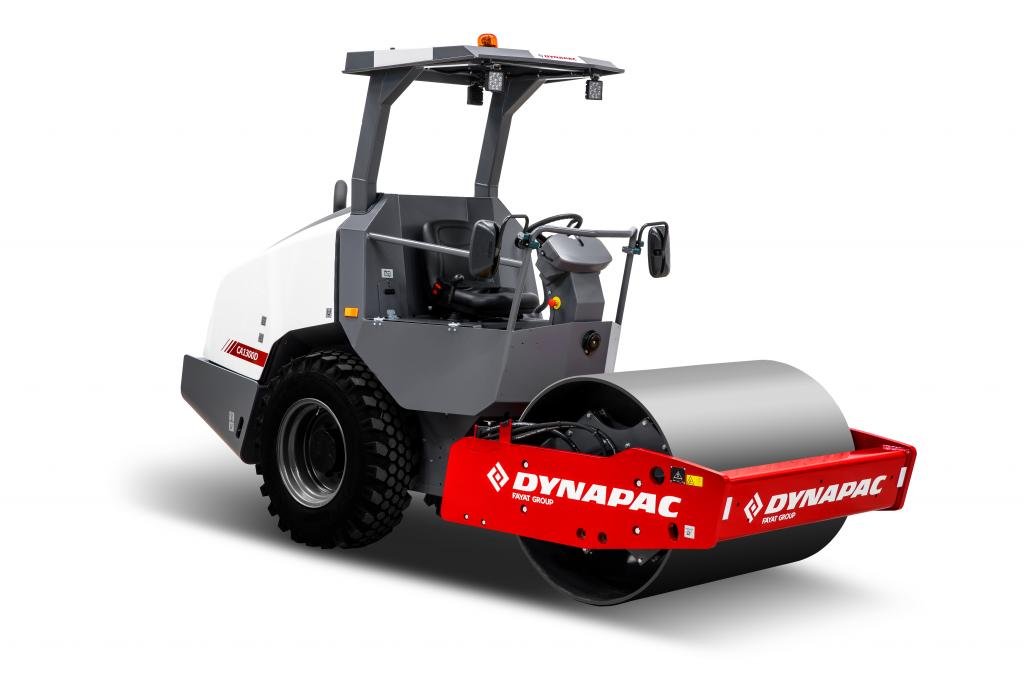

Dyanpac CA1300D 54” Smooth Drum
Drum Width: All models have a working width of 66 inches (167.6 cm).
Operating Weight: Typically ranges from approximately 17,000 lbs (7,711 kg), depending on the model and whether it has a cab or ROPS.
Engine Power: Usually powered by a Deutz or Cummins diesel engine producing around 99 hp or more.
Centrifugal Force: Ranges from around 16,000 lbs (low amplitude) to nearly 30,000 lbs (high amplitude).
Dyanpac CA1500PD 66” Pad Foot
Drum Width: All models have a working width of 66 inches (167.6 cm).
Operating Weight: Typically ranges from approximately 15,874 lbs (7,200kg), depending on the model and whether it has a cab or ROPS.
Engine Power: Usually powered by a Deutz or Cummins diesel engine producing around 99 hp or more.
Centrifugal Force: Ranges from around 16,000 lbs (low amplitude) to nearly 30,000 lbs (high amplitude).
Dyanpac CA1500D 66” Smooth Drum
Operating Mass: Approximately 26,500 lbs (12,020 kg), depending on configuration (e.g., open ROPS vs. cab)
Drum Width: 84 inches (2130 mm).
Engine:
Manufacturer/Model: Cummins F3.8 (Tier 4 Final)
Rated Power: 135 hp (100 kW) @ 2200 rpm for the F3.8 engine, according to Dynapac's official specifications.
Compaction Performance:
Centrifugal Force (High Amplitude): Approximately 62,947 lbs (28,552 kg).
Centrifugal Force (Low Amplitude): Approximately 38,218 lbs (17,335 kg).
Vibration Frequency: 1,860/2,040 VPM (31-34 Hz).
Number of Pads: 130 pads on the drum.
Pad Height: 4 inches (102 mm).
Dynapac CA3500PD 84” Padfoot
Dynapac CA3500D 84” Padfoot
Operating Mass: Approximately 26,200 lbs (11,900 kg), depending on configuration (e.g., open ROPS vs. cab).
Drum Width: 84 inches (2130 mm).
Engine:
Manufacturer/Model: Cummins F3.8 (Tier 4 Final)
Rated Power: 135 hp (100 kW) @ 2200 rpm for the F3.8 engine, according to Dynapac's official specifications.
Compaction Performance:
Centrifugal Force (High Amplitude): Approximately 62,947 lbs (28,552 kg).
Centrifugal Force (Low Amplitude): Approximately 38,218 lbs (17,335 kg).
Vibration Frequency: 1,860/2,040 VPM (31-34 Hz).
